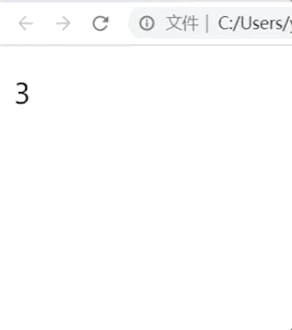

实现效果

实现数据的响应式渲染 在html中使用双大括号进行渲染数据可以使用类似v-text等指令

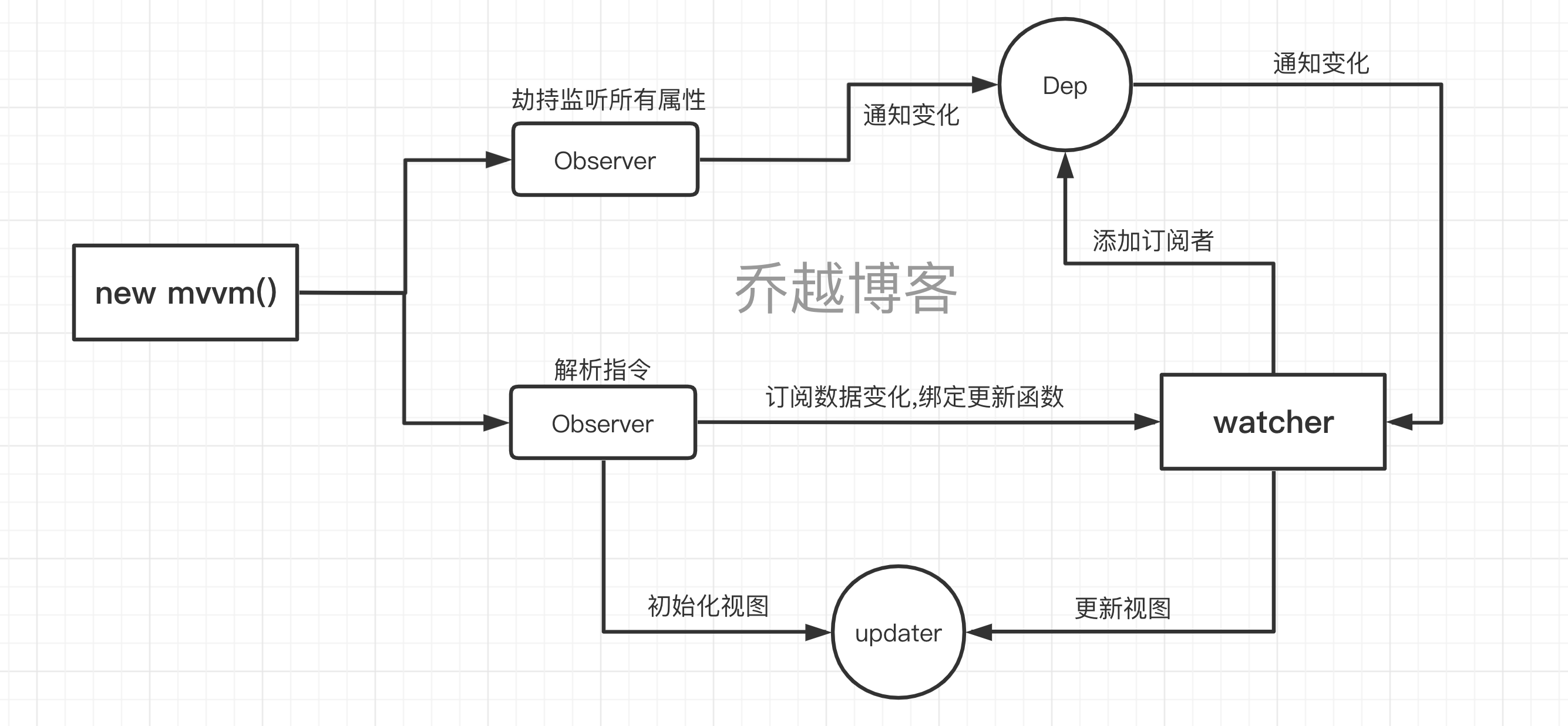

Vue原理分析
new Vue()
首先执行初始化,对data执行响应化处理,这个过程发生在Observer
中
同时对模板执行编译,找到其中动态绑定的数据,从data中获取并初始化视图,这个过程发生在
Compile
中
同时定义一个更新函数和Watcher
,将来对应数据变化时Watcher会调用更新函数
由于data的某个key在一个视图中可能出现多次,所以每个key都需要一个管家Dep来管理多个
Watcher
将来data
中数据一旦发生变化,会首先找到对应的Dep
,通知所有Watcher
执行更新函数

涉及类型介绍
- QVue:框架构造函数
- Observer:执行数据响应化(分辨数据是对象还是数组)
- Compile:编译模板,初始化视图,收集依赖(更新函数、watcher创建)
- Watcher:执行更新函数(更新dom)
- Dep:管理多个Watcher,批量更新
构造函数
我们先创建我们的QVue构造函数
作用就是执行初始化,对data执行响应化处理
class QVue { constructor(options) { this.$options = options this.$data = options.data observe(this.$data) }
}
|
observe
我们需要对数据进行一个遍历然后进行全部的响应化处理
class Observer { constructor(value) { this.value = value if (typeof value === 'object') { this.walk(value) } } Object.keys(value).forEach(key => { defineReactive(value, key, value[key]) }) }
|
defineReactive
使用Object.defineProperty()
进行数据的响应化
function defineReactive(obj, key, val) { observe(val) Object.defineProperty(obj, key, { get() { console.log('get') return val }, set(newVal) { if (newVal !== val) { console.log('set') observe(newVal) val = newVal } } }) }
|
我们这时候就可以去访问我们的页面了发现数据显示出来了
然后我们发现更改数据的时候不对
// 我们需要带上$data 才能访问到数据 app.$data.coun
|
我们需要进行数据的代理然后进行一个数据访问
function proxy(vm, sourceKey) { Object.keys(vm[sourceKey]).forEach((key) => { Object.defineProperty(vm, key, { get() { return vm[sourceKey][key] }, set(newValue) { vm[sourceKey][key] = newValue } }) }) }
|

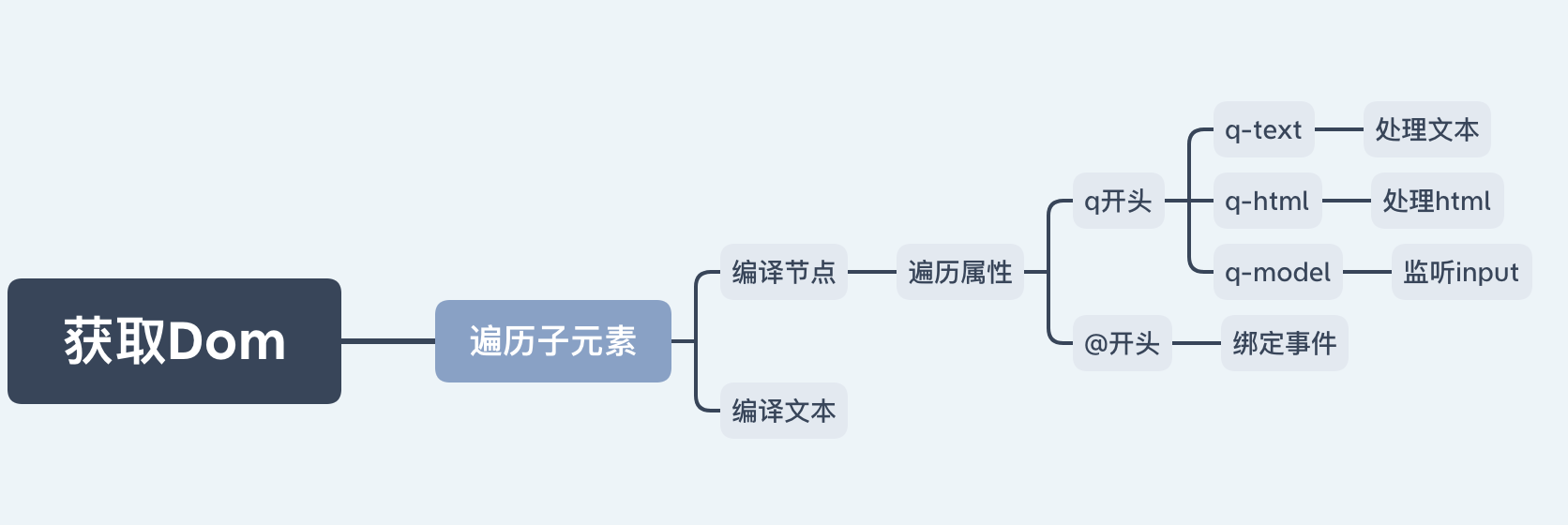

编译 Compile

class Compile { constructor(el, vm) { this.$vm = vm this.$el = document.querySelector(el) if (this.$el) { this.compile(this.$el) } }
compile(el) { const childNodes = el.childNodes Array.from(childNodes).forEach(node => { if (this.isElement(node)) { console.log("编译元素") this.compileElement(node) } else if (this.isInter(node)) { console.log("编译插值表达式") this.compileText(node) } if (node.childNodes && node.childNodes.length > 0) { this.compile(node) } }); }
isElement(node) { return node.nodeType === 1 } isInter(node) { return node.nodeType === 3 && /\{\{(.*)\}\}/.test(node.textContent) }
compileText(node) {
this.update(node, RegExp.$1, 'text') }
compileElement(node) { const nodeAttrs = node.attributes Array.from(nodeAttrs).forEach((attr) => { const attrName = attr.name const exp = attr.value if (this.isDirective(attrName)) { const dir = attrName.substring(2) this[dir] && this[dir](node, exp) } }) }
isDirective(attr) { return attr.indexOf('q-') === 0 }
update(node, exp, dir) { const fn = this[dir + 'Updater'] fn && fn(node, this.$vm[exp])
new Watcher(this.$vm, exp, function (val) { fn && fn(node, val) }) }
textUpdater(node, value) { node.textContent = value }
text(node, exp) { this.update(node, exp, 'text') }
}
|
依赖收集
视图中会用到data中某key,这称为依赖。
同一个key可能出现多次,每次都需要收集出来用一个 Watcher来维护它们,此过程称为依赖收集。
多个Watcher需要一个Dep来管理,需要更新时由Dep统一通知。

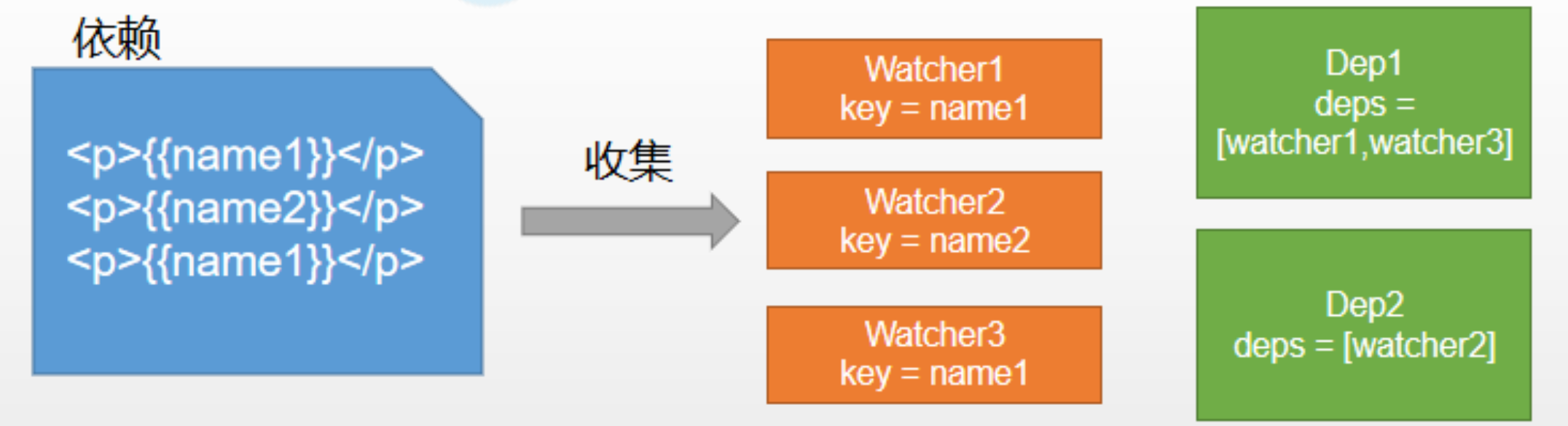

看下面案例,理出思路:
new Vue({ template: `<div> <p>{{name1}}</p> <p>{{name2}}</p> <p>{{name1}}</p> <div>`, data: { name1: 'name1', name2: 'name2' } });
|

思路
- defineReactive时为每一个key创建一个Dep实例
- 初始化视图时读取某个key,例如name1,创建一个watcher1
- 由于触发name1的getter方法,便将watcher1添加到name1对应的Dep中
- 当name1更新,setter触发时,便可通过对应Dep通知其管理所有Watcher更新
创建watcher
const watchers = [];
constructor(vm, key, updateFn) { this.vm = vm;
this.key = key;
this.updateFn = updateFn;
watchers.push(this) }
this.updateFn.call(this.vm, this.vm[this.key]); } }
|
在更新函数中进行创建 watcher
// 调用update函数执插值文本赋值 compileText(node) { // console.log(RegExp.$1); // node.textContent = this.$vm[RegExp.$1]; this.update(node, RegExp.$1, 'text') } text(node, exp) { this.update(node, exp, 'text') } html(node, exp) { this.update(node, exp, 'html') } update(node, exp, dir) { const fn = this[dir+'Updater'] fn && fn(node, this.$vm[exp]) new Watcher(this.$vm, exp, function(val){ fn && fn(node, val) }) } textUpdater(node, val) { node.textContent = val; } htmlUpdater(node, val) { node.innerHTML = val }
|
声明Dep
class Dep { constructor () { this.deps = [] } addDep (dep) { this.deps.push(dep) } notify() { this.deps.forEach(dep => dep.update()); } }
|
创建watcher时触发getter
class Watcher { constructor(vm, key, updateFn) { Dep.target = this; this.vm[this.key]; Dep.target = null; } }
|
依赖收集,创建Dep实例
defineReactive(obj, key, val) { this.observe(val); const dep = new Dep() Object.defineProperty(obj, key, { get() { Dep.target && dep.addDep(Dep.target); return val }, set(newVal) { if (newVal === val) return dep.notify() } }) }
|
个人整体思路:
- 第一步你需要先去解析数据然后让他显示在页面上面
- 使用
Object.defineProperty
对数据进行一个响应化处理
- 对属性进行解析
- 重点监听watcher和Dep管理
- 更新数据
完整代码
